StarFlow6526 Doppler Flow Meter

OVERVIEW

The Starflow Ultrasonic Doppler Instrument is a compact, easy-to-use system for measuring the velocity and depth of water in drainage channels, large pipes, and in rivers and streams.
It is suitable for use in a wide range of water qualities, from sewerage and waste water to clean streams, potable water, and even sea water. The instrument measures forward and reverse flow conditions and may be programmed to compute Flow Rate and Total Flow in pipes and open channels.

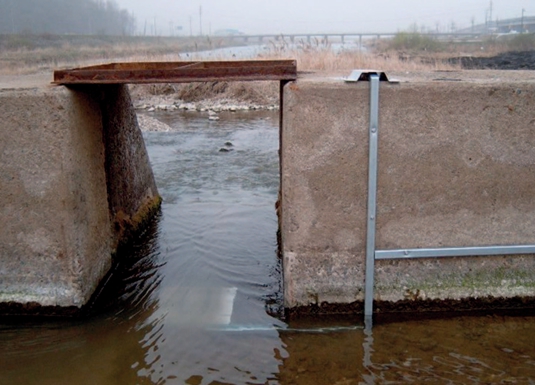

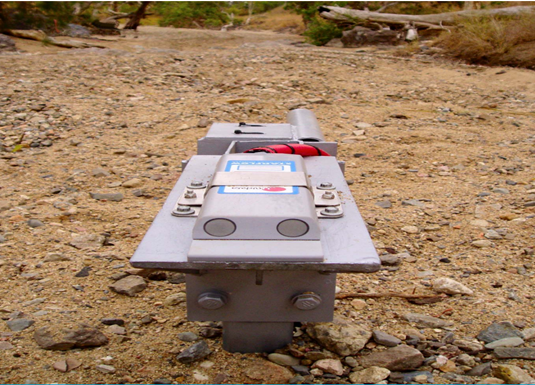

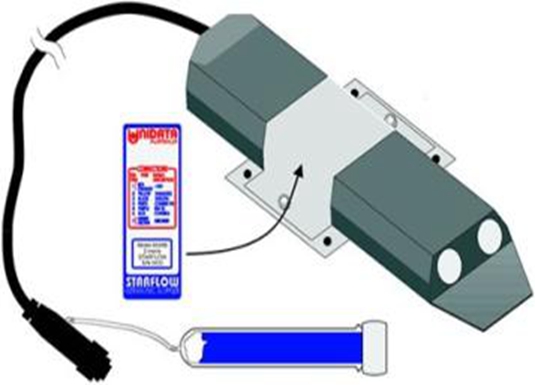

The Model 6526H Starflow combines an ultrasonic transducer assembly (profiled to reduce flow disturbance) with signal processing electronics. It is designed to be placed at (or near) the bottom of a water channel for “upward looking” measurement. A single cable connects the instrument to a 12VDC power source.

Water velocity is measured by the Starflow ultrasonic Doppler principle which relies on suspended particles or small air bubbles in the water to reflect the ultrasonic detector signal. The instrument will not operate in very clean, “de-gassed” water. Water depth is gauged by a hydrostatic pressure sensor, referenced to atmospheric pressure through the vented power and signal cable.

Water temperature is also measured so the instrument can adjust for the change in velocity due to speed of sound. Water temperature can also be logged.
Two version are available, depending on the requirements:

Model	Depth	Resolution
6526H-21	0 to 2 m	0-1m at 1mm1-2m at 2mm
6526H-51	0 to 5m	0-2.5m at 2.5mm2.5-5m at 5mm

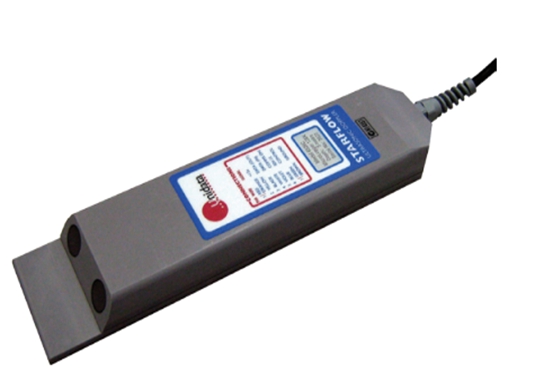

Starflow 6526H

Features
Specifications
Applicaiton Notes
Downloads

New velocity filter for more accurate readings
New Level Sensor
Fully compatible with Neon telemetry data loggers
Records Flow in streams, open channels and part-filled pipes.
Battery Powered for use in remote locations
Easy to install, no weir or flume required.
Optional LCD Flow Display for on site viewing.
Options for wireless and web data collection
SDI-12 Compatible
Rain gauge input
low cost

Velocity
Range: 21mm/s to 4500mm/s bi-directional
Accuracy: 2% of measured velocity
Resolution: 1mm/s
Depth: 0 to 5m in two ranges

Resolution
Range: 0m to 2.0m; 0m to 5.0m
Accuracy: Typical ±0.25%

Temperature
Temperature: -17°C to 60°C
Resolution: 0.1°C.

Flow
Computation: Flow rate, totalised flow
Channel Type: Pipe, open channel, natural stream

Integrated MicroLogger
Storage Memory: 512kB, CMOS RAM
Log Interval: Programmable, 5s to 1 week
Communication: RS-232, 300-38400bps
SDI-12: 1200bps instrument channel.
Control: CMOS output trigger (water sampler)

General
Cable: 15 metres, 9 way vented
Cable Options: User specified up to 100 metres
Power Source: External battery 12V DC
Power Usage:
11.5VDC to 15VDC
65uA standby
200mA active
90mA communications
Operating Temp: 0°C to 60°C water temperature.

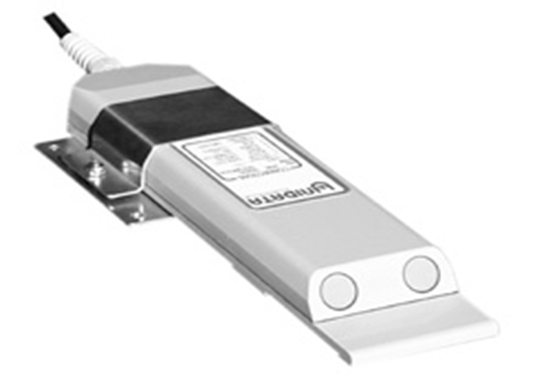

Material: PVC body, stainless steel mounting plate
Dimensions: 290mm x 70mm x 25mm
Weight: 2kg with 15m cable
